POWERPAK SO-8, 8.8 M @ 10V, 12.5

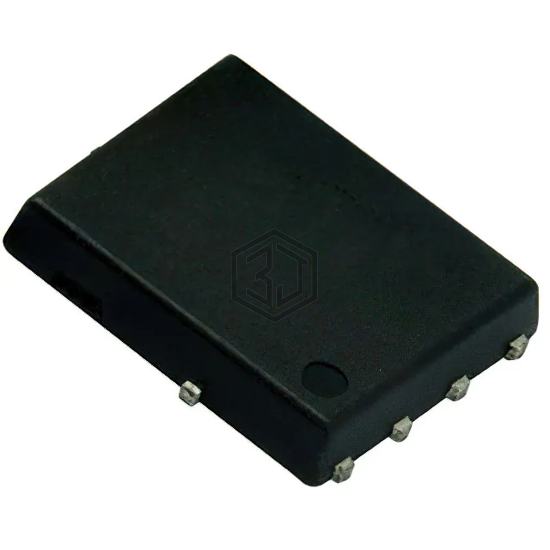

SIR4602LDP-T1-RE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. POWERPAK SO-8, 8.8 M @ 10V, 12.5. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SO-8.
In Stock: 5,910
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 15.2A (Ta), 52.1A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 8.8mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 29 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1185 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.6W (Ta), 43W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SO-8 |
| Package / Case | PowerPAK® SO-8 |
Submit your RFQ for SIR4602LDP-T1-RE3 and get a quote within 24 hours.
