N-CHANNEL 25 V (D-S) 175C MOSFET

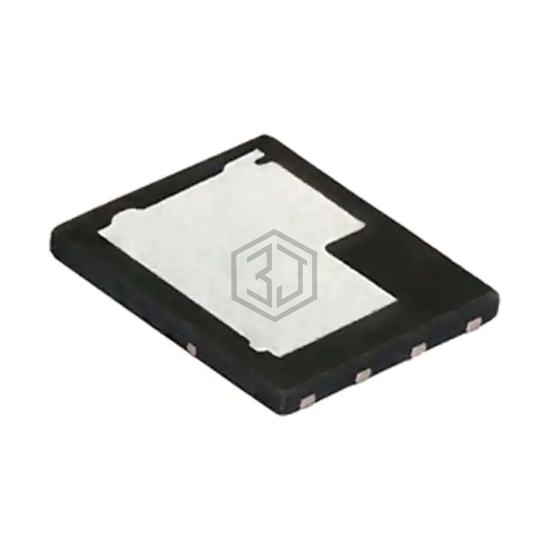

SIDR220EP-T1-RE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. N-CHANNEL 25 V (D-S) 175C MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SO-8.
In Stock: 8,712
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 92.8A (Ta), 415A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 0.58mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 200 nC @ 10 V |
| Vgs (Max) | +16V, -12V |
| Input Capacitance (Ciss) (Max) @ Vds | 10850 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 6.25W (Ta), 415W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SO-8DC |
| Package / Case | PowerPAK® SO-8 |
Submit your RFQ for SIDR220EP-T1-RE3 and get a quote within 24 hours.
