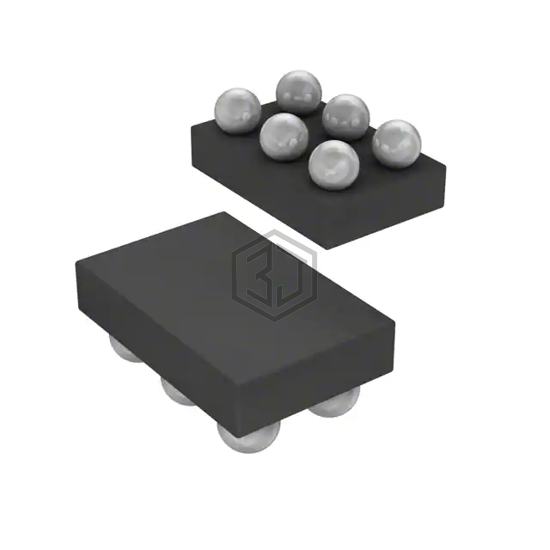

MOSFET P-CH 20V 11A 6MICRO FOOT
SI8447DB-T2-E1 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CH 20V 11A 6MICRO FOOT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UFBGA.
In Stock: 125
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.7V, 4.5V |
| Rds On (Max) @ Id, Vgs | 75mOhm @ 1A, 4.5V |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 25 nC @ 10 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 600 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.77W (Ta), 13W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-Micro Foot™ (1.5x1) |
| Package / Case | 6-UFBGA |
Submit your RFQ for SI8447DB-T2-E1 and get a quote within 24 hours.
