MOSFET N-CH 60V 240MA SC70-3

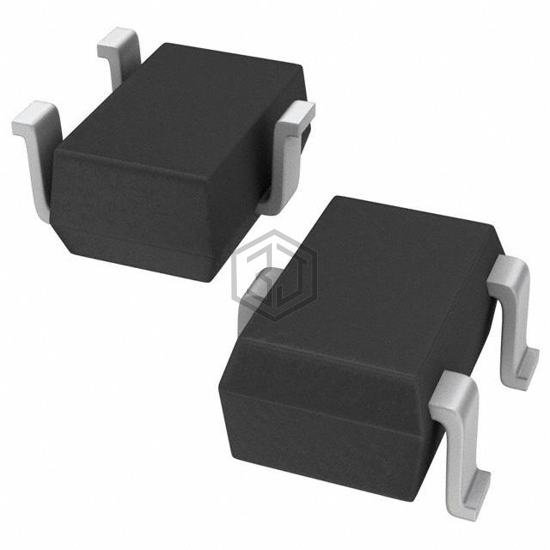

SI1330EDL-T1-E3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 60V 240MA SC70-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-70, SOT-323.
In Stock: 2,855
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 240mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 3V, 10V |
| Rds On (Max) @ Id, Vgs | 2.5Ohm @ 250mA, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.6 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| FET Feature | - |
| Power Dissipation (Max) | 280mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-3 |
| Package / Case | SC-70, SOT-323 |
Submit your RFQ for SI1330EDL-T1-E3 and get a quote within 24 hours.
