MOSFET P-CH 20V 350MA SC75A

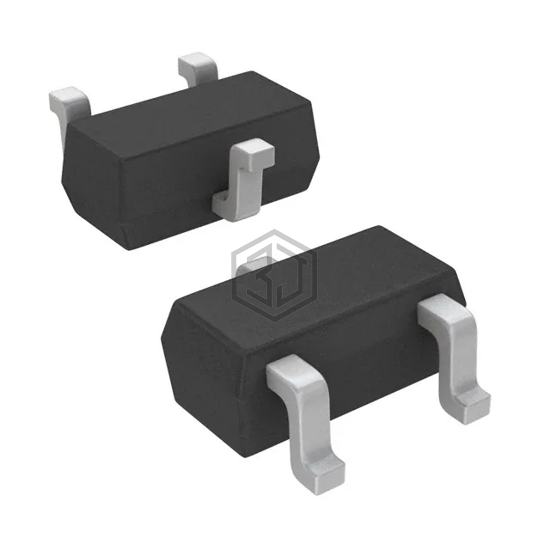

SI1013R-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CH 20V 350MA SC75A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-75, SOT-416.
In Stock: 89,811
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 350mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 1.2Ohm @ 350mA, 4.5V |
| Vgs(th) (Max) @ Id | 450mV @ 250µA (Min) |
| Gate Charge (Qg) (Max) @ Vgs | 1.5 nC @ 4.5 V |
| Vgs (Max) | ±6V |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| FET Feature | - |
| Power Dissipation (Max) | 150mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-75A |
| Package / Case | SC-75, SOT-416 |
Submit your RFQ for SI1013R-T1-GE3 and get a quote within 24 hours.
