MOSFET P-CH 20V 450MA SC89-3

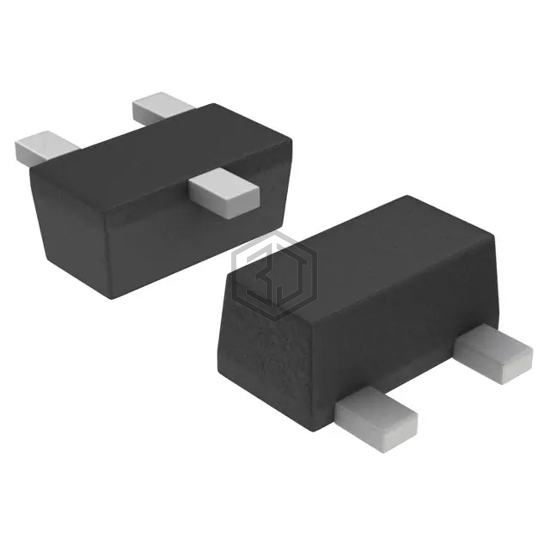

SI1013CX-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CH 20V 450MA SC89-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-89, SOT-490.
In Stock: 2,960
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 450mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V |
| Rds On (Max) @ Id, Vgs | 760mOhm @ 400mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 2.5 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 45 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 190mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-89-3 |
| Package / Case | SC-89, SOT-490 |
Submit your RFQ for SI1013CX-T1-GE3 and get a quote within 24 hours.
