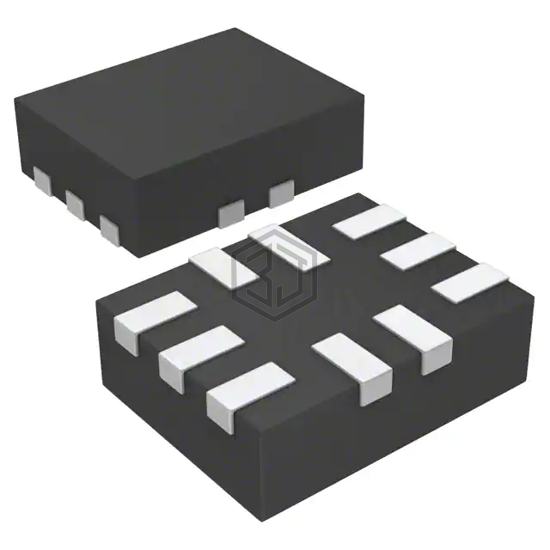

IC SWITCH DUAL SPST 10QFN
DG9636DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL SPST 10QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 10-UFQFN, number of circuits 2.
In Stock: 6,949
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 110Ohm |
| Channel-to-Channel Matching (ΔRon) | 4Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 70ns, 55ns |
| -3db Bandwidth | 720MHz |
| Charge Injection | 23.5pC |
| Channel Capacitance (CS(off), CD(off)) | 2pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -67dB @ 10MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-miniQFN (1.4x1.8) |
DG9636DN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG4052EEN-T1-GE4 | Vishay Siliconix | IC MUX DUAL 4CHAN 16-MINIQFN | 76% | View |
| ADG611YRUZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 71% | View |
| ADG613YRUZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 71% | View |
| ADG612YRUZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 71% | View |
| ADG613SRUZ-EP-RL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 71% | View |
| ADG612YRUZ-REEL | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 71% | View |
Submit your RFQ for DG9636DN-T1-E4 and get a quote within 24 hours.
