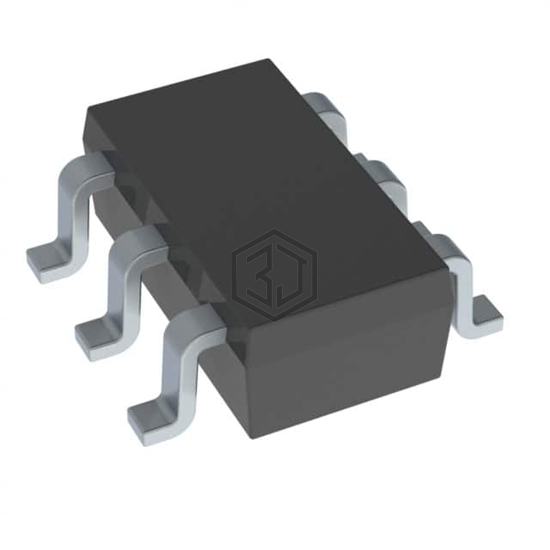

IC ANALOG SWITCH 6-TSOP
DG9421EDV-T1-GE3 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC ANALOG SWITCH 6-TSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case SOT-23-6 Thin, TSOT-23-6, number of circuits 1.
In Stock: 7,773
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 3.2Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 3V ~ 16V |
| Voltage - Supply, Dual (V±) | ±3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 36ns, 22ns |
| -3db Bandwidth | 161MHz |
| Charge Injection | 19pC |
| Channel Capacitance (CS(off), CD(off)) | 34pF, 36pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | 6-TSOP |
