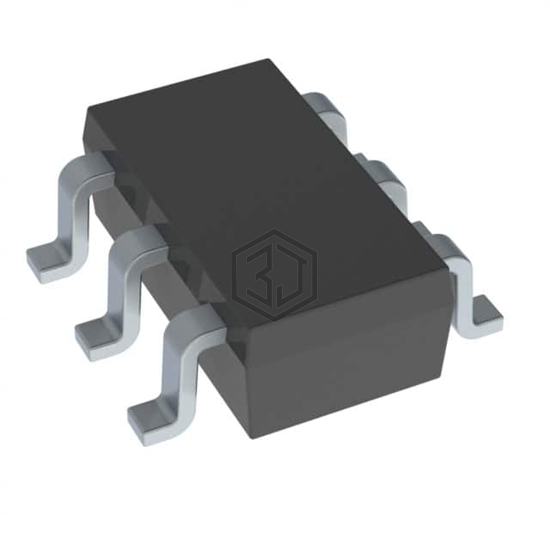

IC SWITCH SGL 5V ON/OFF 6-TSOP
DG9421DV-T1-E3 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH SGL 5V ON/OFF 6-TSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-23-6 Thin, TSOT-23-6, number of circuits 1.
In Stock: 5,345
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 3Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 45ns, 47ns |
| -3db Bandwidth | - |
| Charge Injection | 43pC |
| Channel Capacitance (CS(off), CD(off)) | 31pF, 30pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | 6-TSOP |
DG9421DV-T1-E3 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG819BRMZ | Analog Devices Inc. | IC SWITCH SPDT 8MSOP | 66% | View |
| ADG819BRT-500RL7 | Analog Devices Inc. | IC SWITCH SPDT SOT23-6 | 66% | View |
| ADG819BRT-REEL7 | Analog Devices Inc. | IC SWITCH SPDT SOT23-6 | 66% | View |
| NX3L4684TK,115 | NXP USA Inc. | IC ANALOG SWITCH SPDT 10HVSON | 62% | View |
| ADG801BRMZ | Analog Devices Inc. | IC SWITCH SPST 8MSOP | 58% | View |
| 5962-9201401M2A | Analog Devices Inc. | ANALOG MUX SINGLE 4:1 (AD9300) | 57% | View |
Submit your RFQ for DG9421DV-T1-E3 and get a quote within 24 hours.
