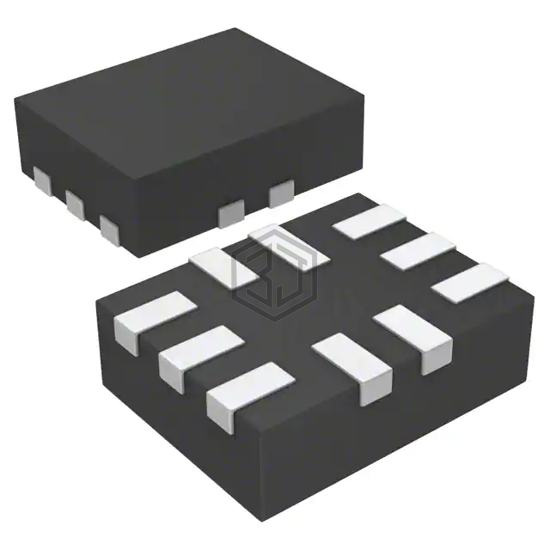

IC ANLG SWITCH DUAL SPST 10QFN
DG9236DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC ANLG SWITCH DUAL SPST 10QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.
In Stock: 5,904
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 145Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 16V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 70ns, 55ns |
| -3db Bandwidth | 800MHz |
| Charge Injection | 6pC |
| Channel Capacitance (CS(off), CD(off)) | 2pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -70dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-miniQFN (1.4x1.8) |
DG9236DN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG9636EN-T1-E4 | Vishay Siliconix | IC SWITCH DUAL SPST 10QFN | 97% | View |
| DG3409DB-T2-E1 | Vishay Siliconix | IC MUX LV 8CH DUAL 4CH 16MICRO | 71% | View |
| ISL43113IBZ | Renesas Electronics America Inc | IC SWITCH SPST 8SOIC | 64% | View |
| ISL43113IBZ-T | Renesas Electronics America Inc | IC SWITCH SPST 8SOIC | 64% | View |
| DG9408EDN-T1-GE4 | Vishay Siliconix | IC ANLG SWITCH PREC 8CH 16QFN | 63% | View |
| ADG436BRZ-REEL | Analog Devices Inc. | IC SWITCH DUAL SPDT 16SOIC | 61% | View |
Submit your RFQ for DG9236DN-T1-E4 and get a quote within 24 hours.
