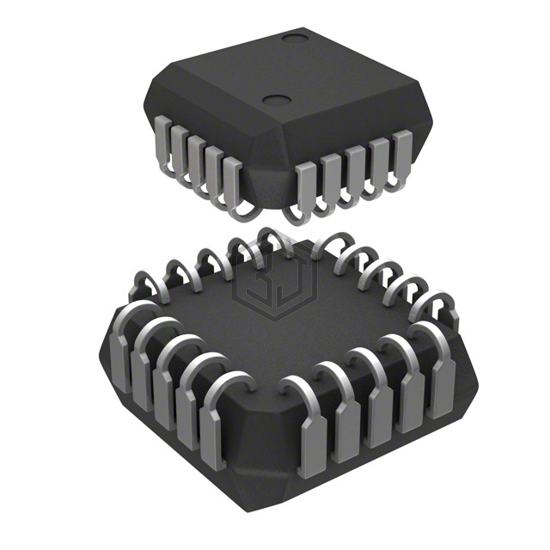

IC SWITCH QUAD SPST 20PLCC
DG540DN is a Interface - Analog Switches - Special Purpose manufactured by Vishay Siliconix. IC SWITCH QUAD SPST 20PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-LCC (J-Lead).
In Stock: 9,463
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Applications | Video |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Switch Circuit | SPST |
| Number of Channels | 4 |
| On-State Resistance (Max) | 60Ohm |
| Voltage - Supply, Single (V+) | 3V ~ 15V |
| Voltage - Supply, Dual (V±) | ±3V ~ 15V |
| -3db Bandwidth | 500MHz |
| Features | RGB, T-Switch Configuration |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) |
DG540DN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TS3L110PWRE4 | Texas Instruments | IC ETHERNET SWITCH QUAD 16TSSOP | 100% | View |
| TS3L110DBQRG4 | Texas Instruments | IC ETHERNET SWITCH QUAD 16SSOP | 100% | View |
| PI3CH1012QEX | Diodes Incorporated | IC SWITCH SPST 8 OHM 24QSOP | 86% | View |
| LMH6570MAX/NOPB | Texas Instruments | IC VIDEO MULTIPLEXER SPST 8SOIC | 71% | View |
| LMH6570MAX | National Semiconductor | VIDEO MULTIPLEXER, 1 FUNC, 4 CHA | 71% | View |
| LMH6574MAX/NOPB | Texas Instruments | IC VIDEO MULTIPLEXER 4X1 14SOIC | 71% | View |
Submit your RFQ for DG540DN and get a quote within 24 hours.
