IC AMP/VIDEO/MUX LP 4/8CH 20PLCC

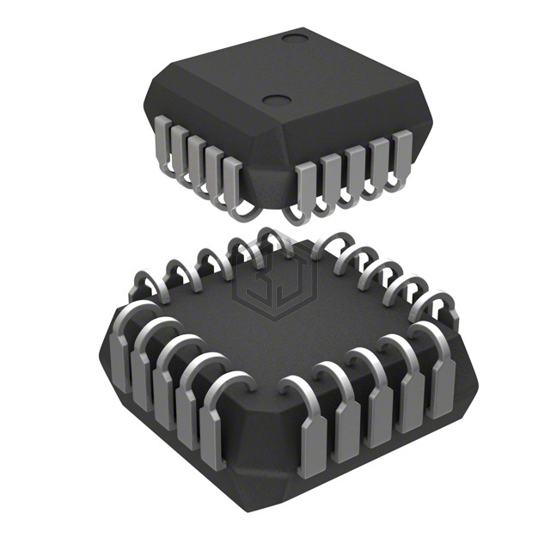

DG534ADN is a Interface - Analog Switches - Special Purpose manufactured by Vishay Siliconix. IC AMP/VIDEO/MUX LP 4/8CH 20PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-LCC (J-Lead).
In Stock: 2,060
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Applications | Ultrasound, Video |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Switch Circuit | SPDT |
| Number of Channels | 2 |
| On-State Resistance (Max) | 90Ohm |
| Voltage - Supply, Single (V+) | 10V ~ 21V |
| Voltage - Supply, Dual (V±) | - |
| -3db Bandwidth | 500MHz |
| Features | T-Switch Configuration |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) |
DG534ADN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4887ETE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH VIDEO TRPL 16TQFN | 83% | View |
| MAX4906EFELB+T | Analog Devices Inc./Maxim Integrated | IC USB SWITCH DUAL 1X2 10UDFN | 82% | View |
| PI3V312LE | Diodes Incorporated | IC VIDEO MUX/DEMUX 2X1 16TSSOP | 75% | View |
| TS3V340RGYR | Texas Instruments | IC VIDEO SWITCH QUAD SPDT 16VQFN | 74% | View |
| TS3L110RGYR | Texas Instruments | IC ETHERNET SWITCH QUAD 16VQFN | 74% | View |
| PI3USB20LE | Diodes Incorporated | IC USB SWITCH QUAD 2X1 16TSSOP | 74% | View |
Submit your RFQ for DG534ADN and get a quote within 24 hours.
