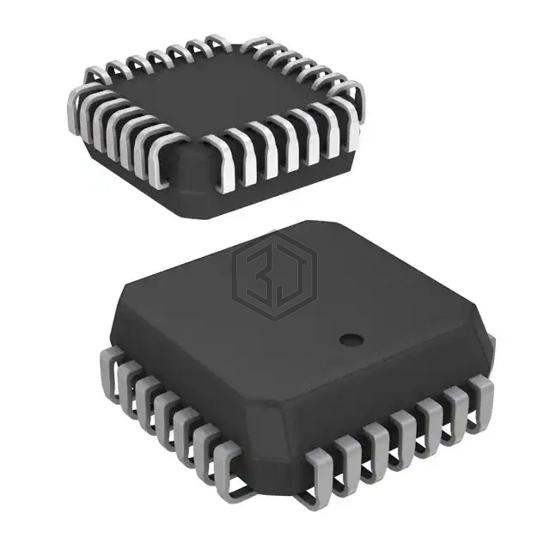

IC MUX ANA DUAL 16/8CH 28PLCC
DG507BEN-T1-GE3 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC MUX ANA DUAL 16/8CH 28PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 28-LCC (J-Lead), number of circuits 2.
In Stock: 156
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 300Ohm |
| Channel-to-Channel Matching (ΔRon) | 10Ohm |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 250ns, 200ns |
| -3db Bandwidth | 217MHz |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 17pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -84dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
