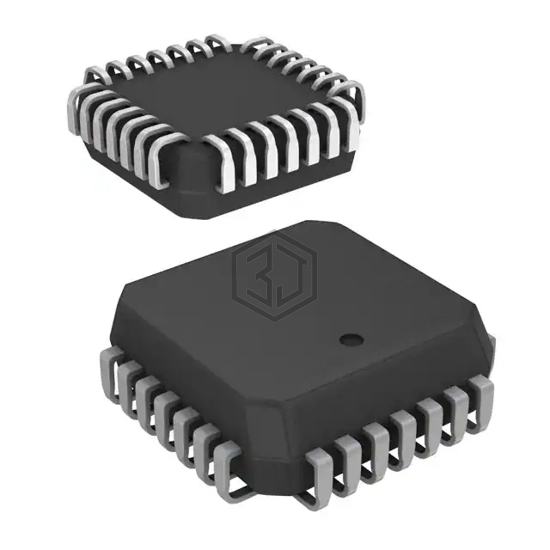

IC MUX ANALOG DUAL 16/8CH 28PLCC
DG506BEN-T1-GE3 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC MUX ANALOG DUAL 16/8CH 28PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 28-LCC (J-Lead), number of circuits 1.
In Stock: 3,434
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 300Ohm |
| Channel-to-Channel Matching (ΔRon) | 10Ohm |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 250ns, 200ns |
| -3db Bandwidth | 114MHz |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 13pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG506BEQ-T1-GE3 | Vishay Siliconix | IC MUX ANA DUAL 16/8CH 28TSSOP | 100% | View |
| DG506BEW-T1-GE3 | Vishay Siliconix | IC MUX ANA DUAL 16/8CH 28SOIC | 100% | View |
| 5962-89710023A | Analog Devices Inc. | CMOS LATCHED 8 CHANNEL ANALOG MU | 81% | View |
| DG508BEN-T1-GE4 | Vishay Siliconix | IC MUX ANALOG SINGLE 8CH 16QFN | 76% | View |
| DG508BEY-T1-E3 | Vishay Siliconix | IC MUX 8CHAN PREC 16-SOIC | 76% | View |
| DG508BEQ-T1-E3 | Vishay Siliconix | IC MUX 8CHAN PREC 16-TSSOP | 76% | View |
