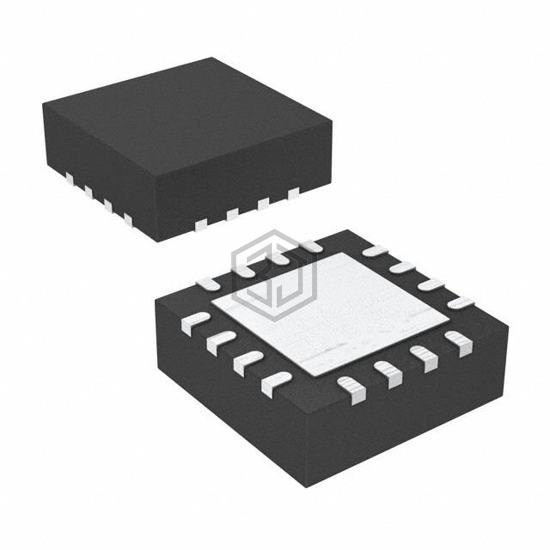

IC SWITCH QUAD SPST 16QFN
DG445BDN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH QUAD SPST 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VQFN Exposed Pad, number of circuits 4.
In Stock: 8,003
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 80Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 300ns, 200ns |
| -3db Bandwidth | - |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 5pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -95dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG212BDY-E3 | Vishay Siliconix | IC SWITCH QUAD SPST 16SOIC | 88% | View |
| DG202BDQ-T1-E3 | Vishay Siliconix | IC SWITCH QUAD CMOS 16TSSOP | 88% | View |
| ADG527AKR-REEL | Analog Devices Inc. | DIFFERENTIAL MUX,8 CHANNEL | 81% | View |
| ADG528AKPZ-REEL | Analog Devices Inc. | IC MULTIPLEXER 8X1 20PLCC | 73% | View |
| ADG508AKRZ-REEL | Analog Devices Inc. | IC MULTIPLEXER 8X1 16SOIC | 73% | View |
| ADG506AKRZ-REEL | Analog Devices Inc. | IC MULTIPLEXER 16X1 28SOIC | 73% | View |
Submit your RFQ for DG445BDN-T1-E4 and get a quote within 24 hours.
