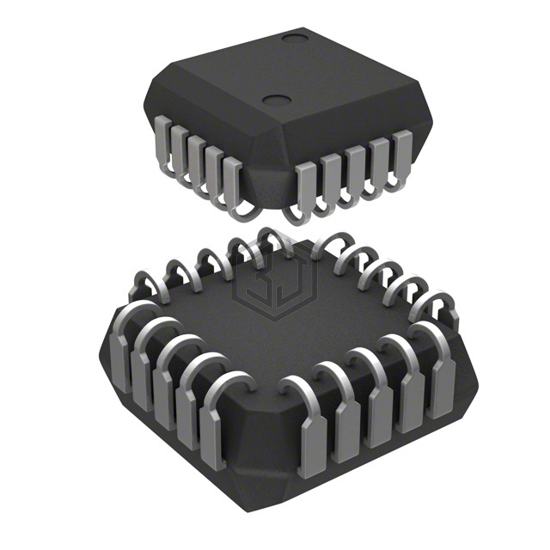

IC MUX ANLG 8CH W/LATCH 20PLCC
DG429DN-E3 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC MUX ANLG 8CH W/LATCH 20PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-LCC (J-Lead), number of circuits 2.
In Stock: 2,303
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 5Ohm |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns |
| -3db Bandwidth | - |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG409DQ-T1-E3 | Vishay Siliconix | IC MULTIPLEXER DUAL 4X2 16TSSOP | 86% | View |
| DG409DYZ-T | Renesas Electronics America Inc | IC MULTIPLEXER DUAL 4X1 16SOIC | 73% | View |
| ADG1413YRUZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 70% | View |
| ADG1411WBCPZ-REEL | Analog Devices Inc. | IC SWITCH QUAD SPST 16LFCSP | 70% | View |
| MAX4561EUT+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT SOT23-6 | 64% | View |
| MAX399EEE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16QSOP | 63% | View |
Submit your RFQ for DG429DN-E3 and get a quote within 24 hours.
