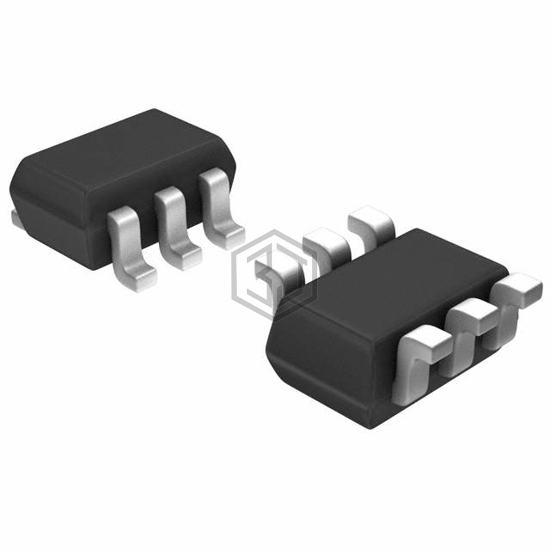

IC ANALOG SWITCH SC70-6
DG4157EDL-T1-GE3 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC ANALOG SWITCH SC70-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 6-TSSOP, SC-88, SOT-363, number of circuits 1.
In Stock: 1,055
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.2Ohm |
| Channel-to-Channel Matching (ΔRon) | 120mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 32ns, 28ns |
| -3db Bandwidth | 152MHz |
| Charge Injection | -5pC |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | 3nA |
| Crosstalk | -41dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG4157EDN-T1-GE4 | Vishay Siliconix | IC ANALOG SWITCH 6MICRODFN | 100% | View |
| DG2001EDV-T1-GE3 | Vishay Siliconix | IC ANALOG SWITCH SPDT LV 6TSOP | 98% | View |
| DG2012EDL-T1-GE3 | Vishay Siliconix | IC ANALOG SWITCH SPDT SC70-6 | 93% | View |
| ISL84467IRTZ-T | Renesas Electronics America Inc | IC SWITCH QUAD SPDT 16TQFN | 53% | View |
| TMUX1308QDYYRQ1 | Texas Instruments | AUTOMOTIVE, 5-V, 8:1, 1-CHANNEL | 51% | View |
| TMUX1308QPWRQ1 | Texas Instruments | AUTOMOTIVE, 1-CHANNEL, 8:1 GENER | 51% | View |
Submit your RFQ for DG4157EDL-T1-GE3 and get a quote within 24 hours.
