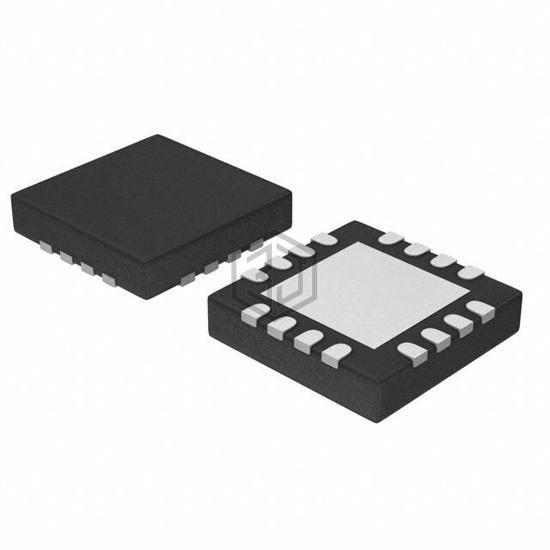

IC MUX CMOS DUAL 4CH 16-QFN
DG409LEDN-T1-GE4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC MUX CMOS DUAL 4CH 16-QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VFQFN Exposed Pad, number of circuits 2.
In Stock: 8,487
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 23Ohm |
| Channel-to-Channel Matching (ΔRon) | 1Ohm |
| Voltage - Supply, Single (V+) | 3V ~ 16V |
| Voltage - Supply, Dual (V±) | ±3.3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 72ns, 47ns |
| -3db Bandwidth | - |
| Charge Injection | -10pC |
| Channel Capacitance (CS(off), CD(off)) | 5.5pF, 13.5pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -109dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG409LEDY-GE3 | Vishay Siliconix | IC MUX CMOS DUAL 4CH 16-SOIC | 100% | View |
| DG409LEDY-T1-GE3 | Vishay Siliconix | IC MUX CMOS DUAL 4CH 16-SOIC | 100% | View |
| DG409LEDQ-GE3 | Vishay Siliconix | IC MUX CMOS DUAL 4CH 16-TSSOP | 100% | View |
| DG409LEDQ-T1-GE3 | Vishay Siliconix | IC MUX CMOS DUAL 4CH 16-TSSOP | 100% | View |
| DG408LEDY-T1-GE3 | Vishay Siliconix | IC MUX CMOS SINGLE 8CH 16-SOIC | 91% | View |
| DG408LEDQ-T1-GE3 | Vishay Siliconix | IC MUX CMOS SINGLE 8CH 16TSSOP | 91% | View |
