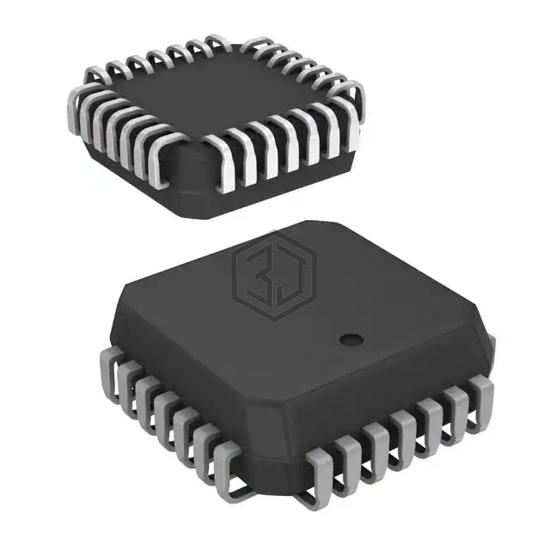

IC ANALOG SWITCH SPDT 28PLCC
DG406BDN is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC ANALOG SWITCH SPDT 28PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 28-LCC (J-Lead), number of circuits 1.
In Stock: 5,688
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 60Ohm |
| Channel-to-Channel Matching (ΔRon) | 3Ohm |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 107ns, 88ns |
| -3db Bandwidth | - |
| Charge Injection | 11pC |
| Channel Capacitance (CS(off), CD(off)) | 6pF, 108pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
DG406BDN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG406BDW-T1-E3 | Vishay Siliconix | IC SWITCH SINGLE 28SOIC | 100% | View |
| DG406BDN-T1-E3 | Vishay Siliconix | IC ANALOG SWITCH SPDT 28PLCC | 100% | View |
| DG406BDN-E3 | Vishay Siliconix | IC ANALOG SWITCH SPDT 28PLCC | 100% | View |
| DG407BDW-T1-E3 | Vishay Siliconix | IC SWITCH DUAL 28SOIC | 91% | View |
| DG407BDN-E3 | Vishay Siliconix | IC MUX CMOS ANLG DUAL 8CH 28PLCC | 91% | View |
| DG407BDN-T1-E3 | Vishay Siliconix | IC MUX CMOS ANLG DUAL 8CH 28PLCC | 91% | View |
Submit your RFQ for DG406BDN and get a quote within 24 hours.
