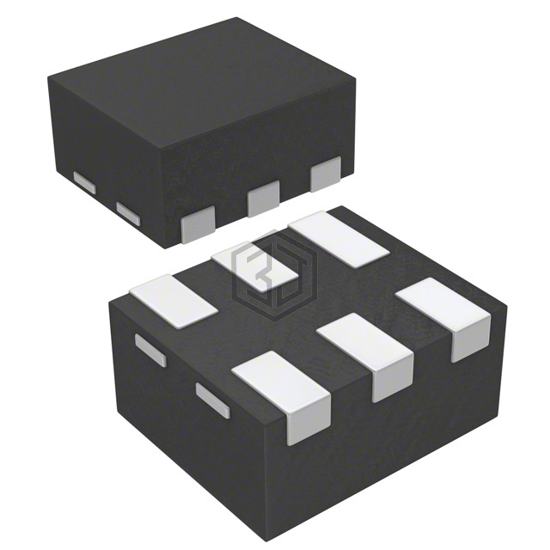

IC SWITCH SPDT 300MHZ 6-MINIQFN
DG3157BDN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH SPDT 300MHZ 6-MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-UFDFN, number of circuits 1.
In Stock: 8,971
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 15Ohm |
| Channel-to-Channel Matching (ΔRon) | 800mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 21ns |
| -3db Bandwidth | 300MHz |
| Charge Injection | 7pC |
| Channel Capacitance (CS(off), CD(off)) | 7pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -64dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-miniQFN (1x1.2) |
DG3157BDN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL43210IHZ-T | Renesas Electronics America Inc | IC SWITCH SPDT SOT23-6 | 72% | View |
| ISL54051IHZ-T | Intersil | ULTRA LOW ON-RESISTANCE, LOW VOL | 65% | View |
| MAX4781EUE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16TSSOP | 60% | View |
| MAX4781ETE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16TQFN | 60% | View |
| HCT4066QPWRG4Q1 | Texas Instruments | IC SWITCH QUAD 1X1 14TSSOP | 59% | View |
| D24066QM96G4Q1 | Texas Instruments | IC SWITCH QUAD 1X1 14SOIC | 59% | View |
Submit your RFQ for DG3157BDN-T1-E4 and get a quote within 24 hours.
