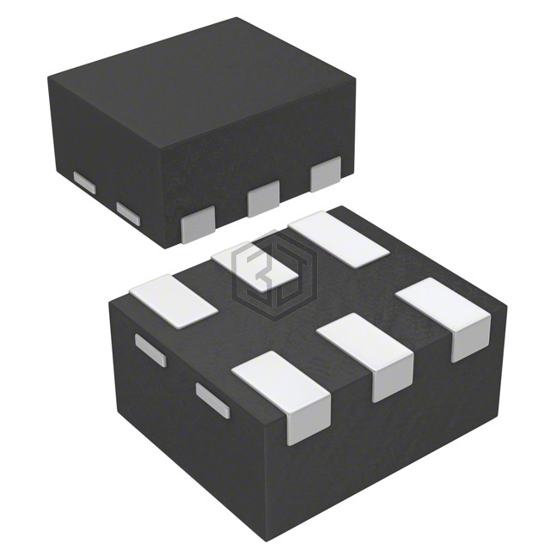

IC SWITCH SPDT 300MHZ 6-MINIQFN
DG3157ADN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH SPDT 300MHZ 6-MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-UFDFN, number of circuits 1.
In Stock: 4,074
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 15Ohm |
| Channel-to-Channel Matching (ΔRon) | 800mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 21ns |
| -3db Bandwidth | 300MHz |
| Charge Injection | 7pC |
| Channel Capacitance (CS(off), CD(off)) | 7pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -64dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-miniQFN (1x1.2) |
DG3157ADN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL54504IRUZ-T | Intersil | SPST, 1 CHANNEL, CMOS, PDSO6 | 80% | View |
| ISL43410IRZ-T | Renesas Electronics America Inc | IC SWITCH DPDT 16QFN | 67% | View |
| ISL43410IU | Renesas Electronics America Inc | IC SWITCH DPDT 10MSOP | 67% | View |
| ISL43410IU-T | Renesas Electronics America Inc | IC SWITCH DPDT 10MSOP | 67% | View |
| 74HCT4851D-Q100,11 | Nexperia USA Inc. | IC MUX/DEMUX 8CH ANLG 16SOIC | 63% | View |
| 74HCT4852D,118 | Nexperia USA Inc. | IC MUX/DEMUX 4:1 210 OHM 16SO | 54% | View |
Submit your RFQ for DG3157ADN-T1-E4 and get a quote within 24 hours.
