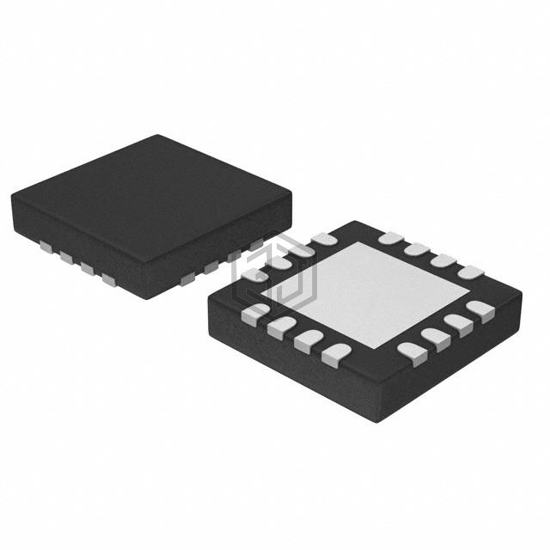

IC SWITCH TRIPLE SPDT 16QFN
DG2753DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH TRIPLE SPDT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VFQFN Exposed Pad, number of circuits 3.
In Stock: 9,337
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 3 |
| On-State Resistance (Max) | 1.2Ohm |
| Channel-to-Channel Matching (ΔRon) | 600mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 60ns, 30ns |
| -3db Bandwidth | - |
| Charge Injection | -25pC |
| Channel Capacitance (CS(off), CD(off)) | 35pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -90dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
DG2753DN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4852ETE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 16TQFN | 86% | View |
| LMS4684LD/NOPB | Texas Instruments | IC SWITCH DUAL SPDT 10WSON | 82% | View |
| LMS4684LD | Texas Instruments | IC SWITCH DUAL SPDT 10WSON | 82% | View |
| AOZ6238QI | Alpha & Omega Semiconductor Inc. | IC ANLG SWITCH DUAL SPDT 10QFN | 64% | View |
| DG442LEDQ-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-TSSOP | 60% | View |
| DG2739DN-T1-E4 | Vishay Siliconix | IC SWITCH 2XSPST 8 OHM 8MINIQFN | 51% | View |
Submit your RFQ for DG2753DN-T1-E4 and get a quote within 24 hours.
