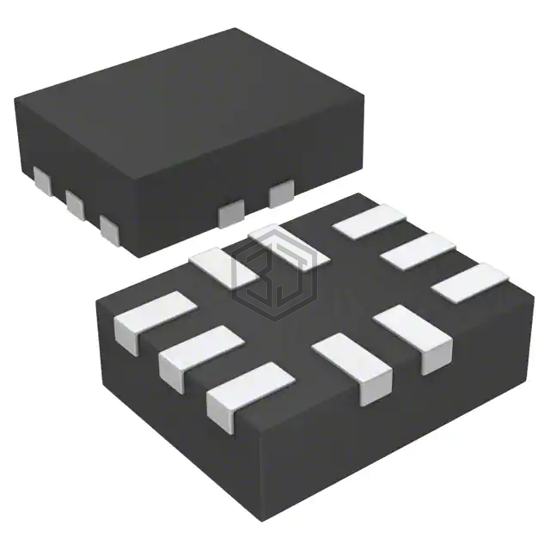

IC SWITCH LV DUAL SPST 10MINIQFN
DG2750DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH LV DUAL SPST 10MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.
In Stock: 2,655
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 1Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 2.1µs, 130ns |
| -3db Bandwidth | 49MHz |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 36pF |
| Current - Leakage (IS(off)) (Max) | 50nA (Typ) |
| Crosstalk | -60dB @ 300kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-miniQFN (1.4x1.8) |
