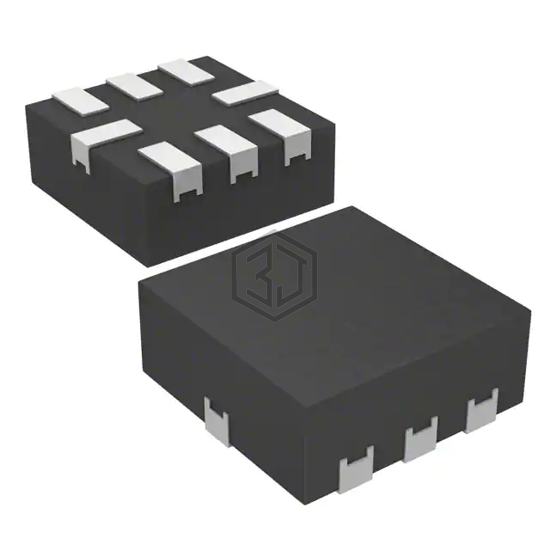

IC SWITCH 2XSPDT 500MOHM MINIQFN
DG2735DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH 2XSPDT 500MOHM MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-UFQFN, number of circuits 2.
In Stock: 8,906
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 500mOhm |
| Channel-to-Channel Matching (ΔRon) | 60mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 78ns, 58ns |
| -3db Bandwidth | 50MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 55pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -70dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-UFQFN |
| Supplier Device Package | 8-miniQFN (1.4x1.4) |
DG2735DN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG2733EDN-T1-GE4 | Vishay Siliconix | IC SWITCH SPDT DUAL 10DFN | 64% | View |
| MAX4502EUK+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SOT23-5 | 60% | View |
| SN74HC4851PWR | Texas Instruments | IC MUX/DEMUX 8X1 16TSSOP | 58% | View |
| SN74HC4851DR | Texas Instruments | IC MUX/DEMUX 8X1 16SOIC | 58% | View |
| SN74HC4851QPWRG4Q1 | Texas Instruments | IC MUX/DEMUX 8X1 16TSSOP | 58% | View |
| SN74HC4851DGVR | Texas Instruments | IC MUX/DEMUX 8X1 16TVSOP | 58% | View |
Submit your RFQ for DG2735DN-T1-E4 and get a quote within 24 hours.
