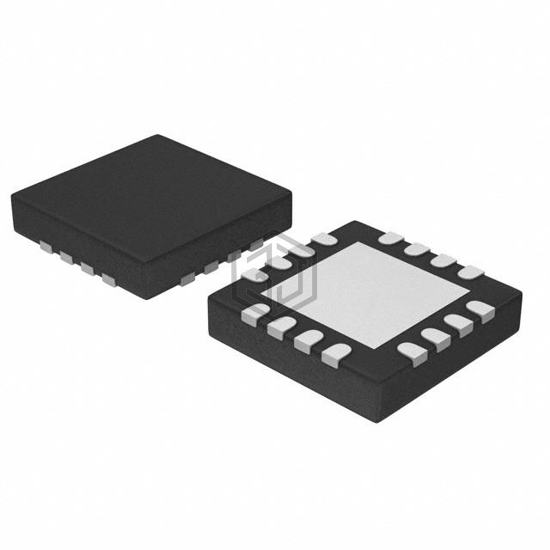

IC SWITCH DUAL DPDT 16QFN
DG2718DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL DPDT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VFQFN Exposed Pad, number of circuits 2.
In Stock: 4,079
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 600mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 57ns, 45ns |
| -3db Bandwidth | - |
| Charge Injection | 232pC |
| Channel Capacitance (CS(off), CD(off)) | 102pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -75dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
DG2718DN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG636EEQ-T1-GE4 | Vishay Siliconix | IC SWITCH DUAL SPDT 14TSSOP | 64% | View |
| 74HC4052PW,118 | Nexperia USA Inc. | IC MUX/DEMUX DUAL 4X1 16TSSOP | 57% | View |
| 74HC4052D,653 | Nexperia USA Inc. | IC MUX/DEMUX DUAL 4X1 16SOIC | 57% | View |
| 74HC4052D-Q100,118 | Nexperia USA Inc. | IC MUX/DEMUX DUAL 4CH 16SOIC | 57% | View |
| 74HC4052BQ-Q100,11 | Nexperia USA Inc. | IC MUX/DEMUX DUAL 4CH 16DHVQFN | 57% | View |
| 74HC4052PW/AUJ | NXP USA Inc. | IC MUX/DEMUX DUAL 4X1 16TSSOP | 57% | View |
Submit your RFQ for DG2718DN-T1-E4 and get a quote within 24 hours.
