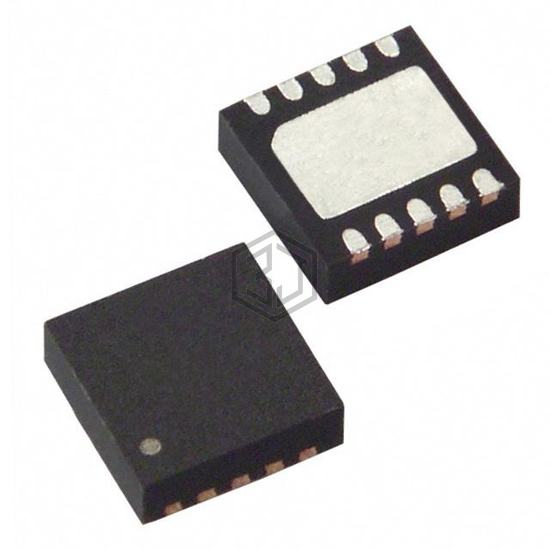

IC SWITCH LV DUAL SPST 10DFN
DG2616DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH LV DUAL SPST 10DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-VFDFN Exposed Pad, number of circuits 2.
In Stock: 8,579
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 7Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 1.5V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 69ns, 39ns |
| -3db Bandwidth | - |
| Charge Injection | 7pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
DG2616DN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG2617DN-T1-E4 | Vishay Siliconix | IC SWITCH LV DUAL SPST 10DFN | 100% | View |
| DG2618DN-T1-E4 | Vishay Siliconix | IC SWITCH LV DUAL SPST 10DFN | 100% | View |
| ISL43112IHZ-T | Renesas Electronics America Inc | IC SWITCH SPST SOT23-5 | 73% | View |
| DG2531DQ-T1-E3 | Vishay Siliconix | IC SWITCH LV DUAL SPST 10MSOP | 69% | View |
| ADG436BR | Analog Devices Inc. | IC SWITCH DUAL SPDT 16SOIC | 67% | View |
| MAX4610EUD+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 14TSSOP | 60% | View |
Submit your RFQ for DG2616DN-T1-E4 and get a quote within 24 hours.
