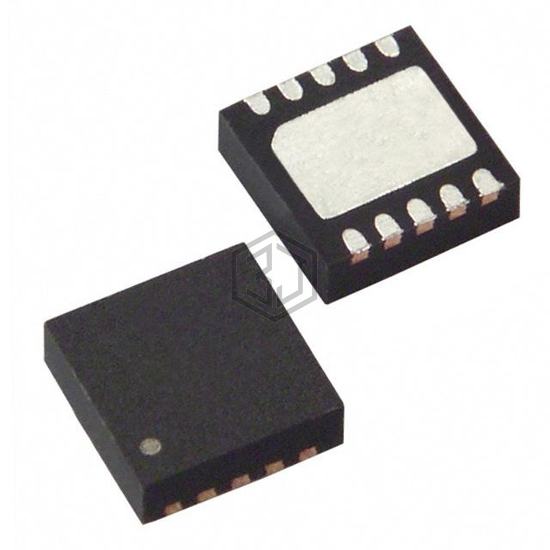

IC ANALOG SWITCH DUAL 10QFN
DG2535EDN-T1-GE4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC ANALOG SWITCH DUAL 10QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-VFDFN Exposed Pad, number of circuits 2.
In Stock: 6,951
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 500mOhm |
| Channel-to-Channel Matching (ΔRon) | 60mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 78ns, 58ns |
| -3db Bandwidth | 120MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | - |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG2733EDQ-T1-GE3 | Vishay Siliconix | IC ANLG SWITCH DUAL SPDT 10MSOP | 100% | View |
| DG2535EDQ-T1-GE3 | Vishay Siliconix | IC ANALOG SWITCH DUAL 10MSOP | 100% | View |
| 74HC4851BQ,115 | Nexperia USA Inc. | IC MUX/DEMUX 8X1 16DHVQFN | 82% | View |
| 74HC4851D,112 | NXP USA Inc. | NOW NEXPERIA 74HC4851D - SINGLE- | 82% | View |
| SN74HC4851QDRG4Q1 | Texas Instruments | IC MUX/DEMUX 8X1 16SOIC | 82% | View |
| SN74HC4851D | Texas Instruments | IC MUX/DEMUX 8X1 16SOIC | 82% | View |
Submit your RFQ for DG2535EDN-T1-GE4 and get a quote within 24 hours.
