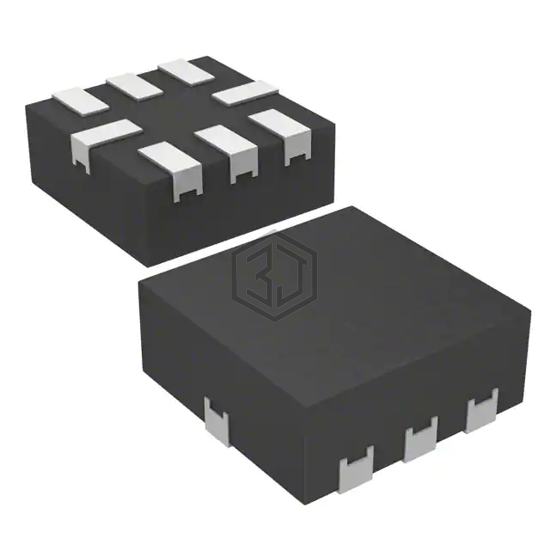

IC SWITCH SP3T FAULT 8-MINIQFN
DG2522DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH SP3T FAULT 8-MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-UFQFN, number of circuits 1.
In Stock: 3,105
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SP3T |
| Multiplexer/Demultiplexer Circuit | 3:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.1Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.6V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 75ns, 60ns |
| -3db Bandwidth | 105MHz |
| Charge Injection | 27pC |
| Channel Capacitance (CS(off), CD(off)) | 51pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -64dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-UFQFN |
| Supplier Device Package | 8-miniQFN (1.4x1.4) |
DG2522DN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4501EUK+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SOT23-5 | 57% | View |
| MAX4501EXK+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SC70-5 | 57% | View |
| MAX4502EUK+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SOT23-5 | 57% | View |
| MAX4502EXK+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SC70-5 | 57% | View |
| MAX4502EUK-T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SOT23-5 | 57% | View |
| ADG608TRUZ-REEL | Analog Devices Inc. | IC MULTIPLEXER 8X1 16TSSOP | 51% | View |
Submit your RFQ for DG2522DN-T1-E4 and get a quote within 24 hours.
