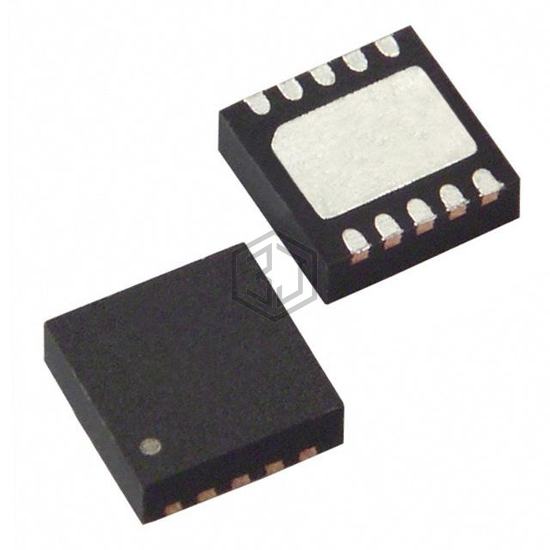

IC SWITCH DUAL SPDT 10DFN
DG2518DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL SPDT 10DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-VFDFN Exposed Pad, number of circuits 2.
In Stock: 7,495
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 4Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 20ns |
| -3db Bandwidth | 242MHz |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 8pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -73dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
DG2518DN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL76123AHZ-T7A | Renesas Electronics America Inc | IC SWITCH AUTO SPDT SOT-23 | 73% | View |
| MAX4782EUE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16TSSOP | 71% | View |
| 74HCT4852BQ,115 | Nexperia USA Inc. | IC MUX 4:1 195 OHM 16DHVQFN | 66% | View |
| MAX4781EUE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16TSSOP | 62% | View |
| 74HCT4851PW,118 | Nexperia USA Inc. | IC MUX/DEMUX 8CH SELECT 16TSSOP | 57% | View |
| ISL8499IRZ | Intersil | ULTRA LOW ON-RESISTANCE, SINGLE | 50% | View |
Submit your RFQ for DG2518DN-T1-E4 and get a quote within 24 hours.
