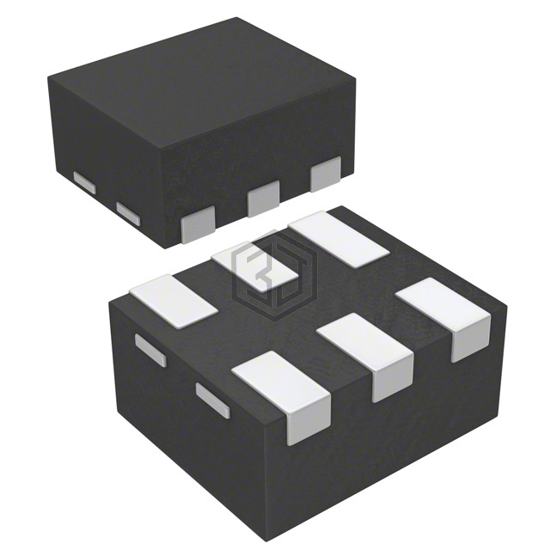

IC SWITCH DUAL LV 6MINIQFN
DG2513DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL LV 6MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-UFDFN, number of circuits 1.
In Stock: 6,491
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.3Ohm |
| Channel-to-Channel Matching (ΔRon) | 150mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 35ns, 31ns |
| -3db Bandwidth | - |
| Charge Injection | 14pC |
| Channel Capacitance (CS(off), CD(off)) | 19pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -64dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-miniQFN (1x1.2) |
DG2513DN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG2512DN-T1-E4 | Vishay Siliconix | IC SWITCH DUAL LV 6MINIQFN | 100% | View |
| TS5A3159DBVT | Texas Instruments | IC SWITCH SPDT SOT23-6 | 97% | View |
| TS5A3159DCKRE4 | Texas Instruments | IC SWITCH SPDT SC70-6 | 97% | View |
| FSA1256L8X_F113 | onsemi | IC SWITCH DUAL SPST 8MICROPAK | 84% | View |
| ZXFV301N16TA | Diodes Incorporated | IC SWITCH 4X1 16SOIC | 80% | View |
| TS3A24159DGSR | Texas Instruments | IC SWITCH SPDT DUAL 10VSSOP | 51% | View |
Submit your RFQ for DG2513DN-T1-E4 and get a quote within 24 hours.
