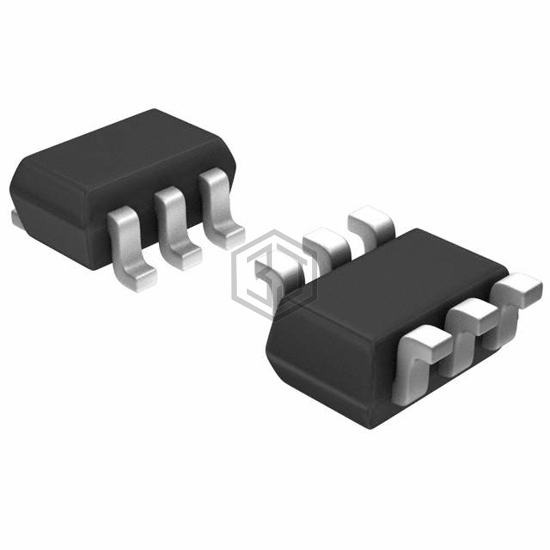

IC SWITCH LV SPST SC70-6
DG2307DL-T1-E3 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH LV SPST SC70-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-TSSOP, SC-88, SOT-363, number of circuits 1.
In Stock: 5,385
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 12Ohm |
| Channel-to-Channel Matching (ΔRon) | 320mOhm |
| Voltage - Supply, Single (V+) | 2V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 2.6ns, 2.6ns |
| -3db Bandwidth | 250MHz |
| Charge Injection | 7pC |
| Channel Capacitance (CS(off), CD(off)) | 6.5pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -58.7dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
DG2307DL-T1-E3 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG2307DL-T1-GE3 | Vishay Siliconix | IC SWITCH LV SPST SC70-6 | 100% | View |
| FSA266L8X | onsemi | IC SWITCH DUAL SPST-NO 8MICROPAK | 83% | View |
| NC7WB66K8X | onsemi | IC SWITCH DUAL SPST-NO US8 | 83% | View |
| 74LVC1G53GF,115 | Nexperia USA Inc. | IC MUX/DEMUX 2CH SELECT 8XSON | 76% | View |
| 74LVC1G53DP-Q100H | Nexperia USA Inc. | IC MUX/DEMUX 2-CH ANALOG 8TSSOP | 76% | View |
| NLAS2066USG | onsemi | IC SWITCH DUAL SPST US8 | 66% | View |
Submit your RFQ for DG2307DL-T1-E3 and get a quote within 24 hours.
