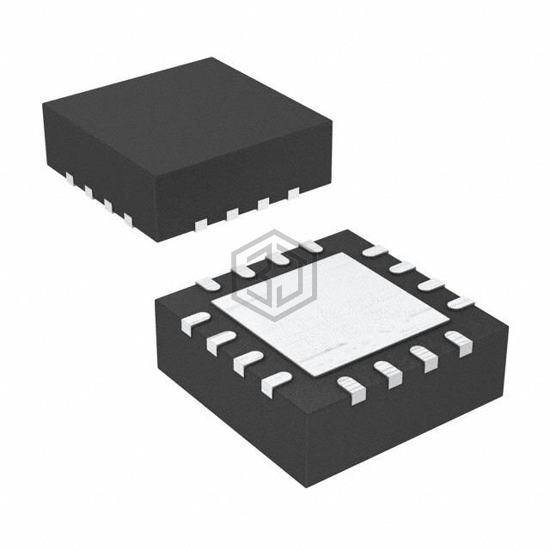

IC SWITCH QUAD SPST 16QFN
DG2041DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH QUAD SPST 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VQFN Exposed Pad, number of circuits 4.
In Stock: 2,184
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 1.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 42ns, 32ns |
| -3db Bandwidth | - |
| Charge Injection | 3pC |
| Channel Capacitance (CS(off), CD(off)) | 26pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -93dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
DG2041DN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG2042DN-T1-E4 | Vishay Siliconix | IC SWITCH QUAD SPST 16QFN | 100% | View |
| DG2042DQ-T1-E3 | Vishay Siliconix | IC SWITCH QUAD SPST 16TSSOP | 100% | View |
| DG2041DQ-T1-E3 | Vishay Siliconix | IC SWITCH QUAD SPST 16TSSOP | 100% | View |
| DG2043DN-T1-E4 | Vishay Siliconix | IC SWITCH QUAD SPST 16QFN | 100% | View |
| DG2043DQ-T1-E3 | Vishay Siliconix | IC SWITCH QUAD SPST 16TSSOP | 100% | View |
| DG417LDQ-T1-E3 | Vishay Siliconix | IC ANALOG SWITCH SPST 8MSOP | 57% | View |
Submit your RFQ for DG2041DN-T1-E4 and get a quote within 24 hours.
