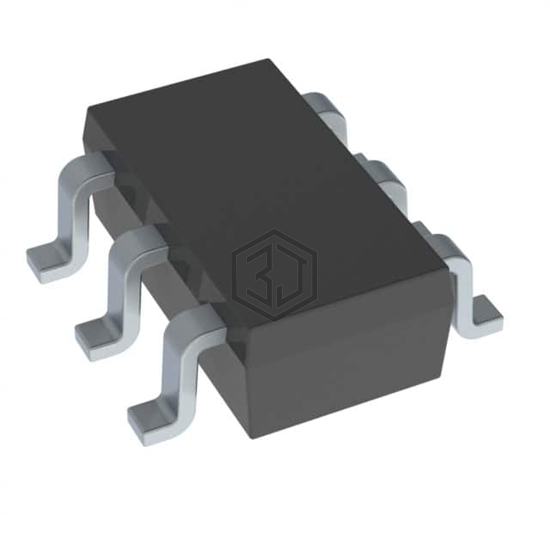

IC ANALOG SWITCH SPDT 6TSOP
DG2020DV-T1-E3 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC ANALOG SWITCH SPDT 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-23-6 Thin, TSOT-23-6, number of circuits 1.
In Stock: 5,581
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.6Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 2.7V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 6µs, 4µs |
| -3db Bandwidth | - |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 65pF |
| Current - Leakage (IS(off)) (Max) | 5.3nA |
| Crosstalk | -54dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | 6-TSOP |
DG2020DV-T1-E3 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX14724ETP+T | Analog Devices Inc./Maxim Integrated | IC MUX 8:4 3OHM 20TQFN | 57% | View |
| MAX14724EWP+T | Analog Devices Inc./Maxim Integrated | IC MUX 8:4 3OHM 20WLP | 57% | View |
| MAX14724ETP+ | Analog Devices Inc./Maxim Integrated | IC MUX 8:4 3OHM 20TQFN | 57% | View |
| MAX14661ETI+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 16:2 TQFN | 55% | View |
| MAX14763ETA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT SINGLE 8TDFN | 55% | View |
| MAX14661ETI+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 16:2 TQFN | 55% | View |
Submit your RFQ for DG2020DV-T1-E3 and get a quote within 24 hours.
