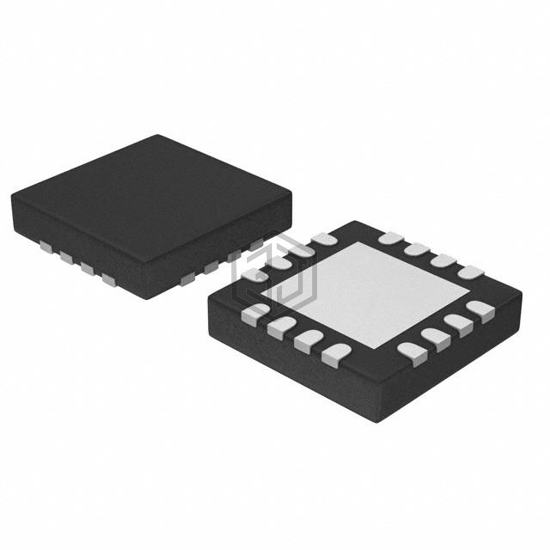

IC SWITCH DUAL SPDT 16QFN
DG2018DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL SPDT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VFQFN Exposed Pad, number of circuits 2.
In Stock: 7,210
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 8Ohm |
| Channel-to-Channel Matching (ΔRon) | 600mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 48ns, 33ns |
| -3db Bandwidth | 180MHz |
| Charge Injection | -2.46pC |
| Channel Capacitance (CS(off), CD(off)) | 7.5pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -72dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
DG2018DN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG2019DN-T1-E4 | Vishay Siliconix | IC SWITCH DUAL SPDT 16QFN | 94% | View |
| DG2016DQ-T1-E3 | Vishay Siliconix | IC SWITCH DUAL SPDT 10MSOP | 92% | View |
| DG2026DQ-T1-E3 | Vishay Siliconix | IC SWITCH DUAL SPDT 10MSOP | 92% | View |
| 74LV4052D-Q100J | Nexperia USA Inc. | IC MUX/DEMUX 4X1 16SOIC | 72% | View |
| DG636EEN-T1-GE4 | Vishay Siliconix | IC ANALOG SWITCH 16MINIQFN | 56% | View |
| DG636EEQ-T1-GE3 | Vishay Siliconix | IC ANALOG SWITCH 14TSSOP | 56% | View |
Submit your RFQ for DG2018DN-T1-E4 and get a quote within 24 hours.
