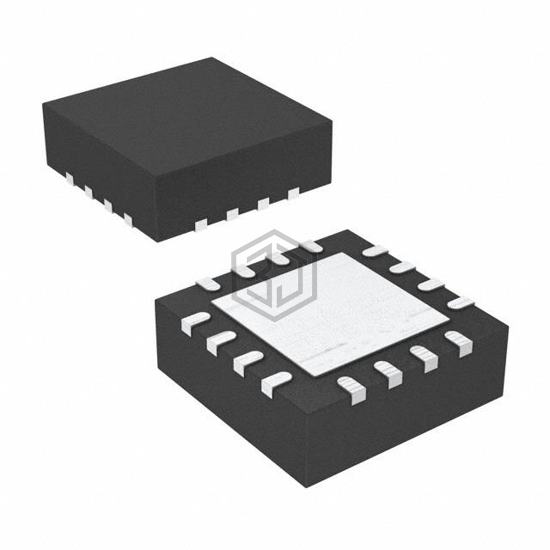

IC SWITCH DUAL SPDT 16QFN
DG2017DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL SPDT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VQFN Exposed Pad, number of circuits 2.
In Stock: 6,594
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 3.7Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm (Max) |
| Voltage - Supply, Single (V+) | 2V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 85ns, 35ns |
| -3db Bandwidth | - |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 43pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -69dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
DG2017DN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG2536DQ-T1-E3 | Vishay Siliconix | IC SWITCH LV DUAL SPST 10MSOP | 71% | View |
| MAX4732EUA+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8UMAX | 70% | View |
| MAX4750EUD+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 14TSSOP | 70% | View |
| MAX4731EUA+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8UMAX | 70% | View |
| DG3536DB-T5-E1 | Vishay Siliconix | IC SWITCH DUAL SPDT 10MICRO | 63% | View |
| MAX4749EUD+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 14TSSOP | 62% | View |
Submit your RFQ for DG2017DN-T1-E4 and get a quote within 24 hours.
