IC SWITCH SPDT SC89-6

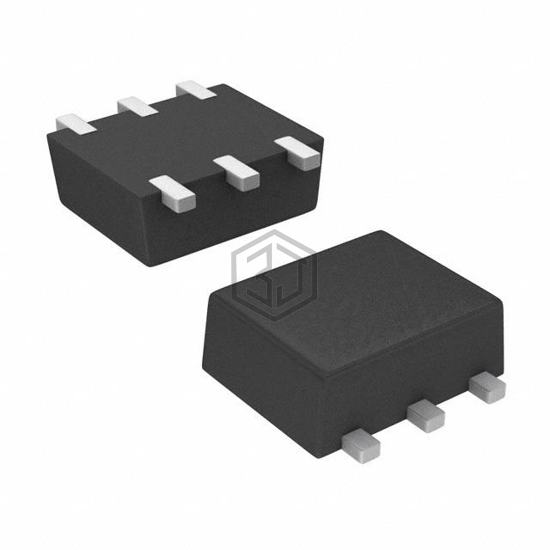

DG2011DXA-T1-E3 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH SPDT SC89-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-563, SOT-666, number of circuits 1.
In Stock: 5,442
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 2.7Ohm |
| Channel-to-Channel Matching (ΔRon) | 200mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 75ns, 59ns |
| -3db Bandwidth | - |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 29pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -69dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SC-89-6 (SOT-666) |
DG2011DXA-T1-E3 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4501ESA+ | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST 8SOIC | 79% | View |
| TS12A4515DR | Texas Instruments | IC SWITCH SPST 8SOIC | 78% | View |
| ADG608BRUZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER 8X1 16TSSOP | 69% | View |
| ADG608TRUZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER 8X1 16TSSOP | 69% | View |
| DG4052EEY-T1-GE3 | Vishay Siliconix | IC MUX DUAL 4CHAN 16-SOIC | 65% | View |
| DG9431EDY-T1-GE3 | Vishay Siliconix | IC SWITCH SPDT LV 8SOIC | 57% | View |
Submit your RFQ for DG2011DXA-T1-E3 and get a quote within 24 hours.
