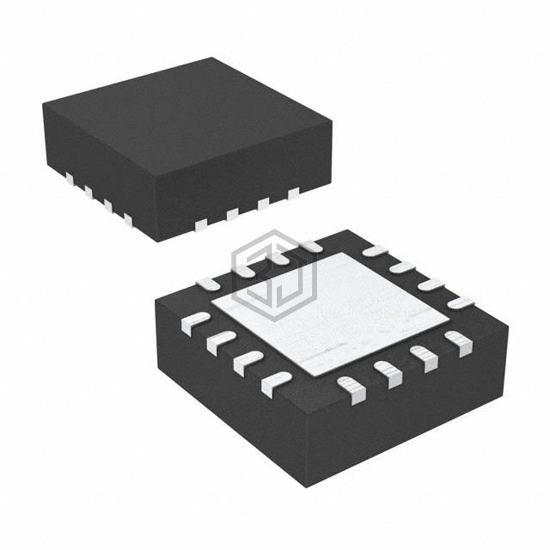

IC SWITCH QUAD SPST 16VQFN
DG1412EN-T1-GE4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH QUAD SPST 16VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-VQFN Exposed Pad, number of circuits 4.
In Stock: 7,584
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 1.8Ohm |
| Channel-to-Channel Matching (ΔRon) | 80mOhm |
| Voltage - Supply, Single (V+) | 4.5V ~ 24V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 15V |
| Switch Time (Ton, Toff) (Max) | 150ns, 120ns |
| -3db Bandwidth | 210MHz |
| Charge Injection | -20pC |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 24pF |
| Current - Leakage (IS(off)) (Max) | 550pA |
| Crosstalk | -100dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
DG1412EN-T1-GE4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG1411YRUZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 87% | View |
| ADG1422BCPZ-REEL7 | Analog Devices Inc. | IC SW SPST 2.1OHM RON 10LFCSP | 84% | View |
| ADG1423BRMZ | Analog Devices Inc. | IC SW SPST 2.1OHM RON 10MSOP | 84% | View |
| ADG1421BRMZ-REEL7 | Analog Devices Inc. | IC SW SPST 2.1OHM RON 10MSOP | 84% | View |
| ADG1423BRMZ-REEL7 | Analog Devices Inc. | IC SW SPST 2.1OHM RON 10MSOP | 84% | View |
| ADG1422BRMZ-REEL7 | Analog Devices Inc. | IC SW SPST 2.1OHM RON 10MSOP | 84% | View |
Submit your RFQ for DG1412EN-T1-GE4 and get a quote within 24 hours.
