Vishay Semiconductor Opto Division
OPTOCOUPLER PHOTOTRIAC 800V DIP4

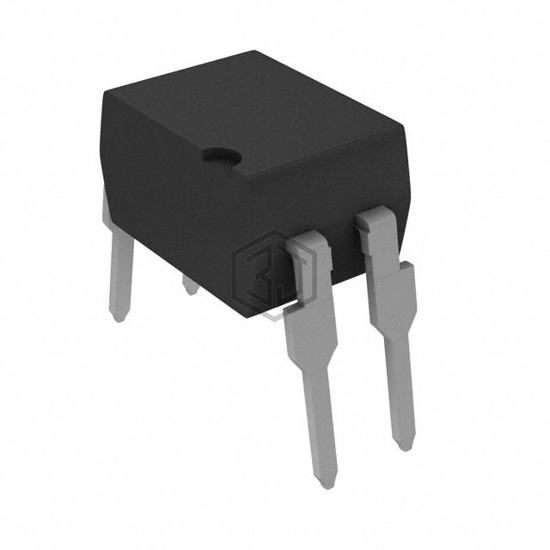

VOT8121AD is a Optoisolators - Triac, SCR Output manufactured by Vishay Semiconductor Opto Division. OPTOCOUPLER PHOTOTRIAC 800V DIP4. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.300", 7.62mm).
In Stock: 260
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Voltage - Off State | 800 V |
| Static dV/dt (Min) | 1kV/µs |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | 100 mA |
| Current - Hold (Ih) | 400µA (Typ) |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Supplier Device Package | 4-DIP |
| Approval Agency | CQC, cUL, UL, VDE |
Submit your RFQ for VOT8121AD and get a quote within 24 hours.
