Vishay Semiconductor Opto Division
OPTOISO 5.3KV 1CH GATE DVR 5LSOP

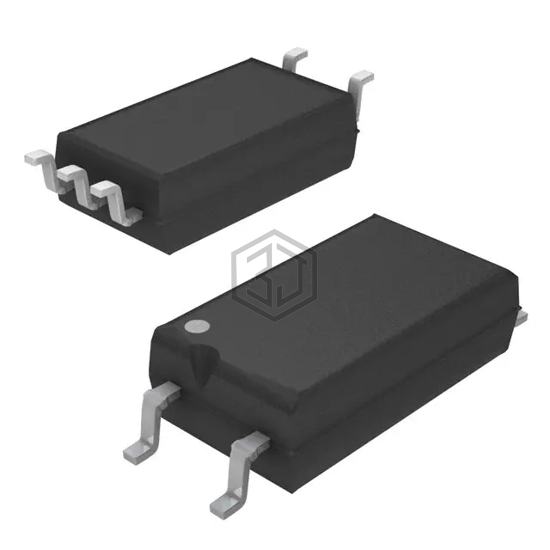

VOL3120T is a Isolators - Gate Drivers manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV 1CH GATE DVR 5LSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.36V, package / case 6-SOIC (0.295", 7.50mm Width), 5 Leads.
In Stock: 7,886
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Common Mode Transient Immunity (Min) | 48kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Pulse Width Distortion (Max) | 300ns |
| Rise / Fall Time (Typ) | 100ns, 100ns |
| Current - Output High, Low | 2.5A, 2.5A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 1.36V |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 15V ~ 32V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.295", 7.50mm Width), 5 Leads |
| Supplier Device Package | 5-LSOP |
| Approval Agency | CQC, cUR, UR |
Submit your RFQ for VOL3120T and get a quote within 24 hours.
