Vishay Semiconductor Opto Division
OPTOISO IGBT MOSFET DRIVER 2.5A

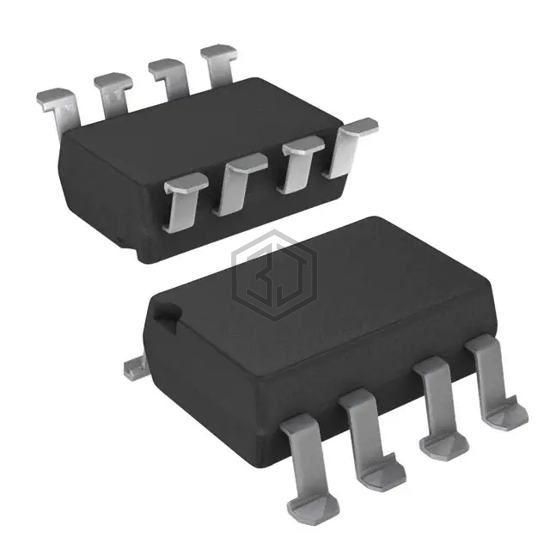

VOD3120AB-VT2 is a Isolators - Gate Drivers manufactured by Vishay Semiconductor Opto Division. OPTOISO IGBT MOSFET DRIVER 2.5A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.37V, package / case 8-SMD, Gull Wing.
In Stock: 964
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Common Mode Transient Immunity (Min) | 35kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Pulse Width Distortion (Max) | 70ns |
| Rise / Fall Time (Typ) | 35ns, 35ns |
| Current - Output High, Low | 2.5A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 1.37V |
| Current - DC Forward (If) (Max) | 20 mA |
| Voltage - Output Supply | 15V ~ 30V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-SMD |
| Approval Agency | CQC, cUL, UL, VDE |
Submit your RFQ for VOD3120AB-VT2 and get a quote within 24 hours.
