Vishay Semiconductor Opto Division
OPTOISOLATOR 4KV 2CH TRANS 8SOIC

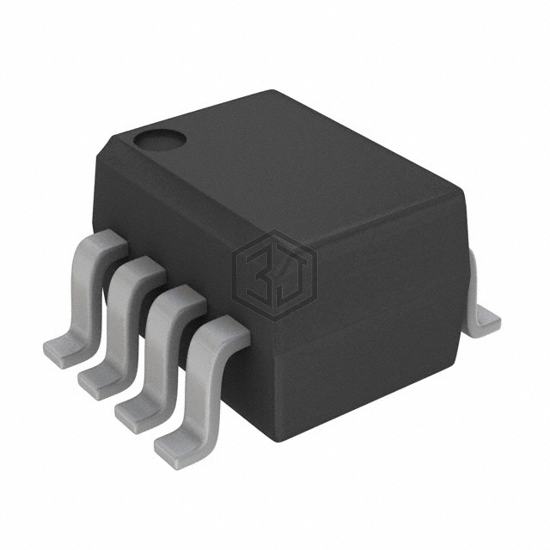

VOD206T is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISOLATOR 4KV 2CH TRANS 8SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 8-SOIC (0.154", 3.90mm Width).
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 2 |
| Voltage - Isolation | 4000Vrms |
| Current Transfer Ratio (Min) | 63% @ 10mA |
| Current Transfer Ratio (Max) | 125% @ 10mA |
| Turn On / Turn Off Time (Typ) | 5µs, 4µs |
| Rise / Fall Time (Typ) | 5µs, 4µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 30 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
Submit your RFQ for VOD206T and get a quote within 24 hours.
