Vishay Semiconductor Opto Division
OPTOISO 5.3KV 1CH GATE DRVR 8DIP

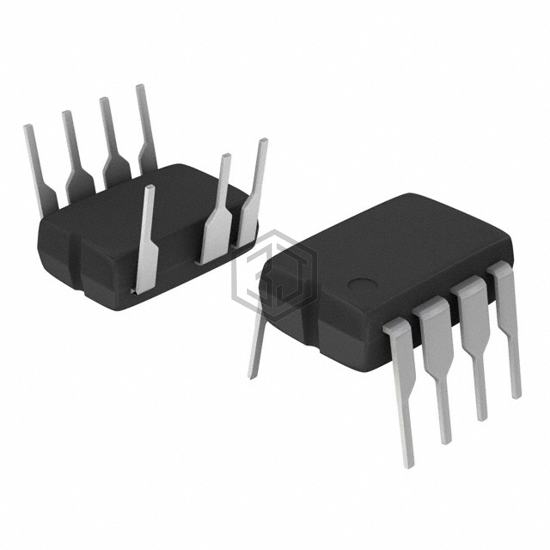

VO3120-X001 is a Isolators - Gate Drivers manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV 1CH GATE DRVR 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage - forward (vf) (typ) 1.6V (Max), package / case 8-DIP (0.300", 7.62mm), 7 Leads.
In Stock: 796
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 400ns, 400ns |
| Pulse Width Distortion (Max) | 200ns |
| Rise / Fall Time (Typ) | 100ns, 100ns |
| Current - Output High, Low | 2.5A, 2.5A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 1.6V (Max) |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 15V ~ 32V |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 8-DIP |
| Approval Agency | cUR, UR, VDE |
Submit your RFQ for VO3120-X001 and get a quote within 24 hours.
