Vishay Semiconductor Opto Division

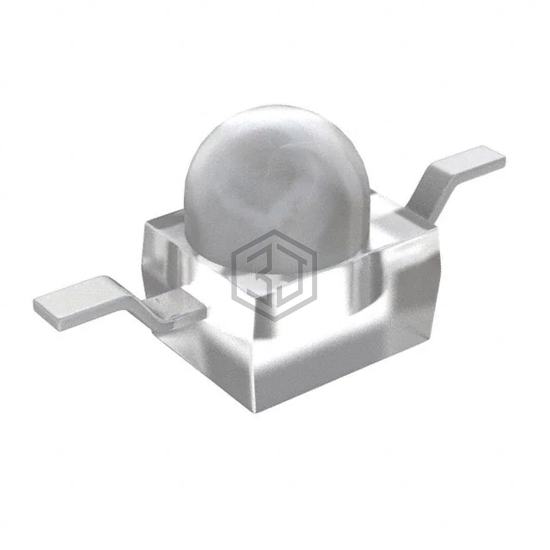

LED RED CLEAR 2SMD BOTTOM ENTRY
VLDS1535R-08 is a LED Indication - Discrete manufactured by Vishay Semiconductor Opto Division. LED RED CLEAR 2SMD BOTTOM ENTRY. Key specifications: mounting type Surface Mount, Bottom Entry, voltage - forward (vf) (typ) 2.2V, package / case 2-SMD, Z-Bend, color Red.
In Stock: 387
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 5000mcd |
| Lens Style | Round with Domed Top |
| Lens Size | 1.80mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 50mA |
| Viewing Angle | 44° |
| Mounting Type | Surface Mount, Bottom Entry |
| Wavelength - Dominant | 630nm |
| Wavelength - Peak | 639nm |
| Features | - |
| Package / Case | 2-SMD, Z-Bend |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 2.30mm L x 2.30mm W |
| Height (Max) | 2.75mm |
Submit your RFQ for VLDS1535R-08 and get a quote within 24 hours.
