Vishay Semiconductor Opto Division
OPTOISO 5KV TRANS W/BASE 6SOP

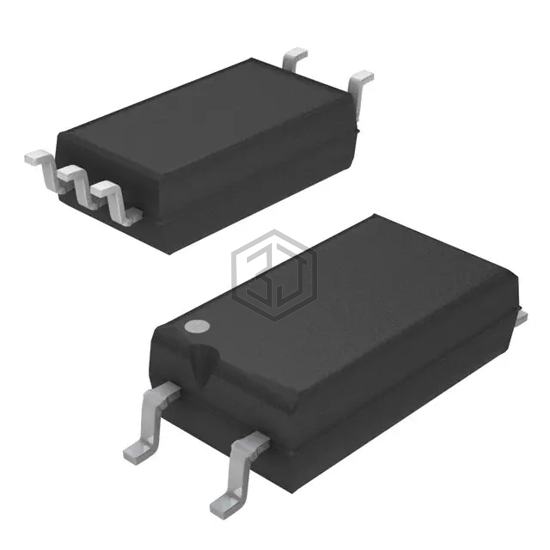

TCLT1102 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5KV TRANS W/BASE 6SOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.25V, package / case 6-SOIC (0.295", 7.50mm Width), 5 Leads.
In Stock: 2,878
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 63% @ 10mA |
| Current Transfer Ratio (Max) | 125% @ 10mA |
| Turn On / Turn Off Time (Typ) | 6µs, 5µs |
| Rise / Fall Time (Typ) | 3µs, 4.7µs |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.295", 7.50mm Width), 5 Leads |
| Supplier Device Package | 6-SOP, 5 Pin |
Submit your RFQ for TCLT1102 and get a quote within 24 hours.
