Vishay Semiconductor Opto Division

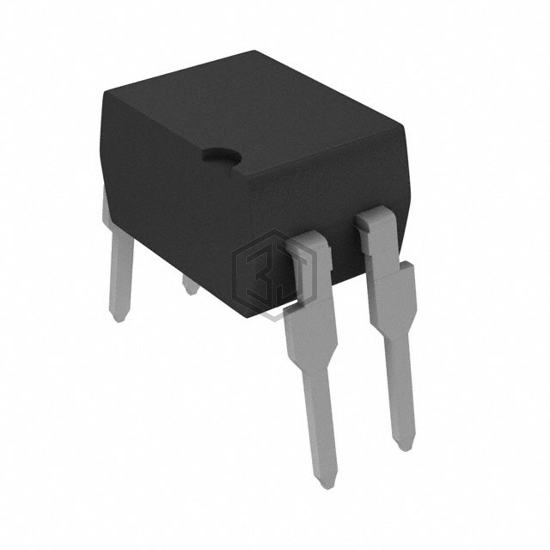

OPTOISOLATR 5KV TRANSISTOR 4-DIP
TCET1108 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISOLATR 5KV TRANSISTOR 4-DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.25V, package / case 4-DIP (0.300", 7.62mm).
In Stock: 2,717
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 130% @ 5mA |
| Current Transfer Ratio (Max) | 260% @ 5mA |
| Turn On / Turn Off Time (Typ) | 6µs, 5µs |
| Rise / Fall Time (Typ) | 3µs, 4.7µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Supplier Device Package | 4-DIP |
Submit your RFQ for TCET1108 and get a quote within 24 hours.
