Vishay Semiconductor Opto Division

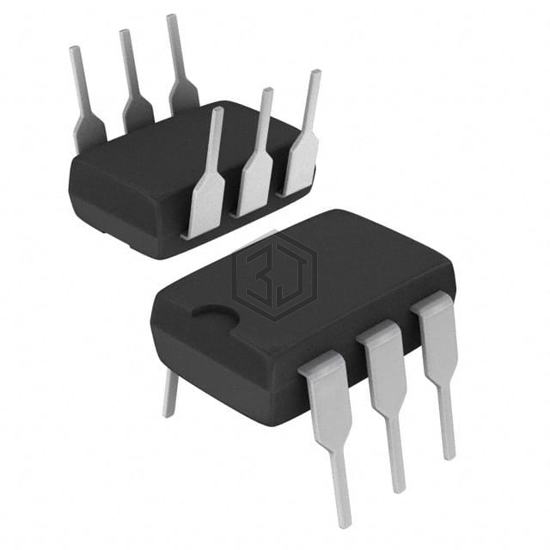

OPTOISOLATOR 5KV TRANS 6DIP
TCDT1102 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISOLATOR 5KV TRANS 6DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.25V, package / case 6-DIP (0.300", 7.62mm).
In Stock: 760
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 63% @ 10mA |
| Current Transfer Ratio (Max) | 125% @ 10mA |
| Turn On / Turn Off Time (Typ) | 11µs, 7µs |
| Rise / Fall Time (Typ) | 7µs, 6.7µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 32V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
Submit your RFQ for TCDT1102 and get a quote within 24 hours.
