Vishay Semiconductor Opto Division
OPTOISO 3KV OPEN DRAIN 8SOIC

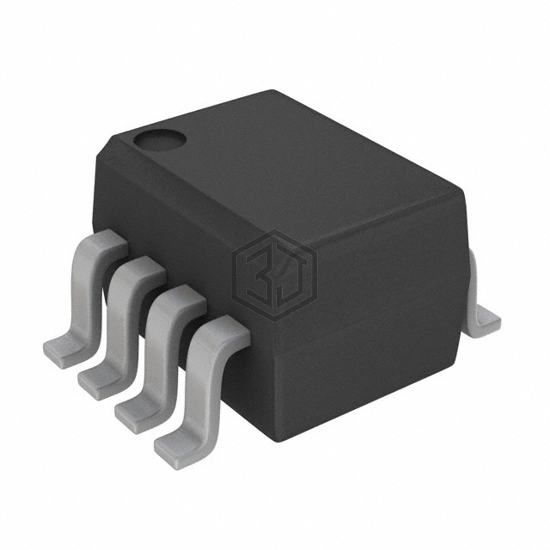

SFH6747T is a Optoisolators - Logic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 3KV OPEN DRAIN 8SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - supply 4.5V ~ 5.5V, package / case 8-SOIC (0.154", 3.90mm Width).
In Stock: 8,082
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 3000Vrms |
| Common Mode Transient Immunity (Min) | 10kV/µs |
| Input Type | DC |
| Output Type | Open Drain |
| Current - Output / Channel | 50 mA |
| Data Rate | 10MBd |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Rise / Fall Time (Typ) | 23ns, 7ns |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
Submit your RFQ for SFH6747T and get a quote within 24 hours.
