Vishay Semiconductor Opto Division

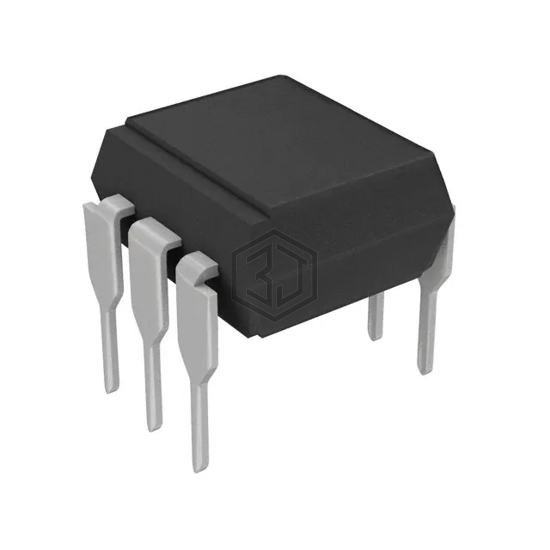

OPTOISOLATOR 5.3KV TRIAC 6DIP
K3012P is a Optoisolators - Triac, SCR Output manufactured by Vishay Semiconductor Opto Division. OPTOISOLATOR 5.3KV TRIAC 6DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.25V, package / case 6-DIP (0.300", 7.62mm).
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Voltage - Off State | 250 V |
| Static dV/dt (Min) | 10kV/µs (Typ) |
| Current - LED Trigger (Ift) (Max) | 5mA |
| Current - On State (It (RMS)) (Max) | 100 mA |
| Current - Hold (Ih) | 100µA (Typ) |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 80 mA |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Approval Agency | BSI, CQC, UR, VDE |
Submit your RFQ for K3012P and get a quote within 24 hours.
