Vishay Semiconductor Opto Division
OPTOISOLATOR 5.3KV TRIAC

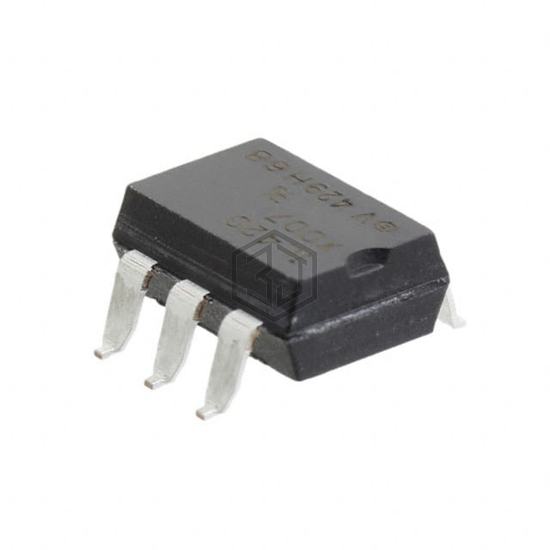

IL4217-X009 is a Optoisolators - Triac, SCR Output manufactured by Vishay Semiconductor Opto Division. OPTOISOLATOR 5.3KV TRIAC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.3V, package / case 6-SMD.
In Stock: 2,736
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Voltage - Off State | 700 V |
| Static dV/dt (Min) | 10kV/µs |
| Current - LED Trigger (Ift) (Max) | 700µA (Typ) |
| Current - On State (It (RMS)) (Max) | 300 mA |
| Current - Hold (Ih) | 200µA |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Current - DC Forward (If) (Max) | 60 mA |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD |
| Supplier Device Package | - |
| Approval Agency | BSI, CSA, cUR, FIMKO, UR |
Submit your RFQ for IL4217-X009 and get a quote within 24 hours.
