Vishay Semiconductor Opto Division
OPTOISO 5.3KV TRANS W/BASE 6SMD

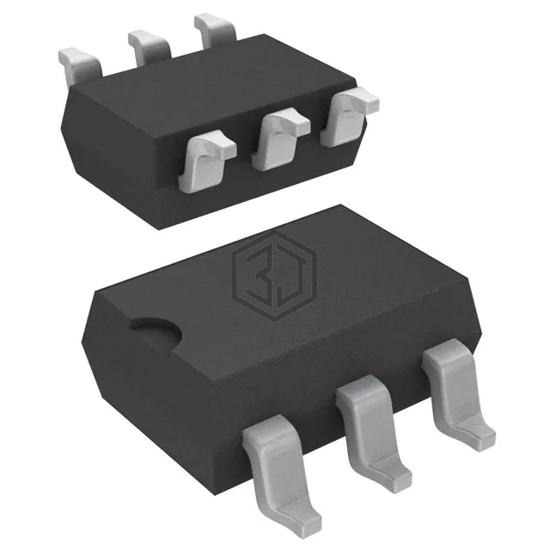

H11D1-X009T is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV TRANS W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.1V, package / case 6-SMD, Gull Wing.
In Stock: 579
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 20% @ 10mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 5µs, 6µs |
| Rise / Fall Time (Typ) | 2.5µs, 5.5µs |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 300V |
| Current - Output / Channel | 100mA |
| Voltage - Forward (Vf) (Typ) | 1.1V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Gull Wing |
| Supplier Device Package | 6-SMD |
Submit your RFQ for H11D1-X009T and get a quote within 24 hours.
